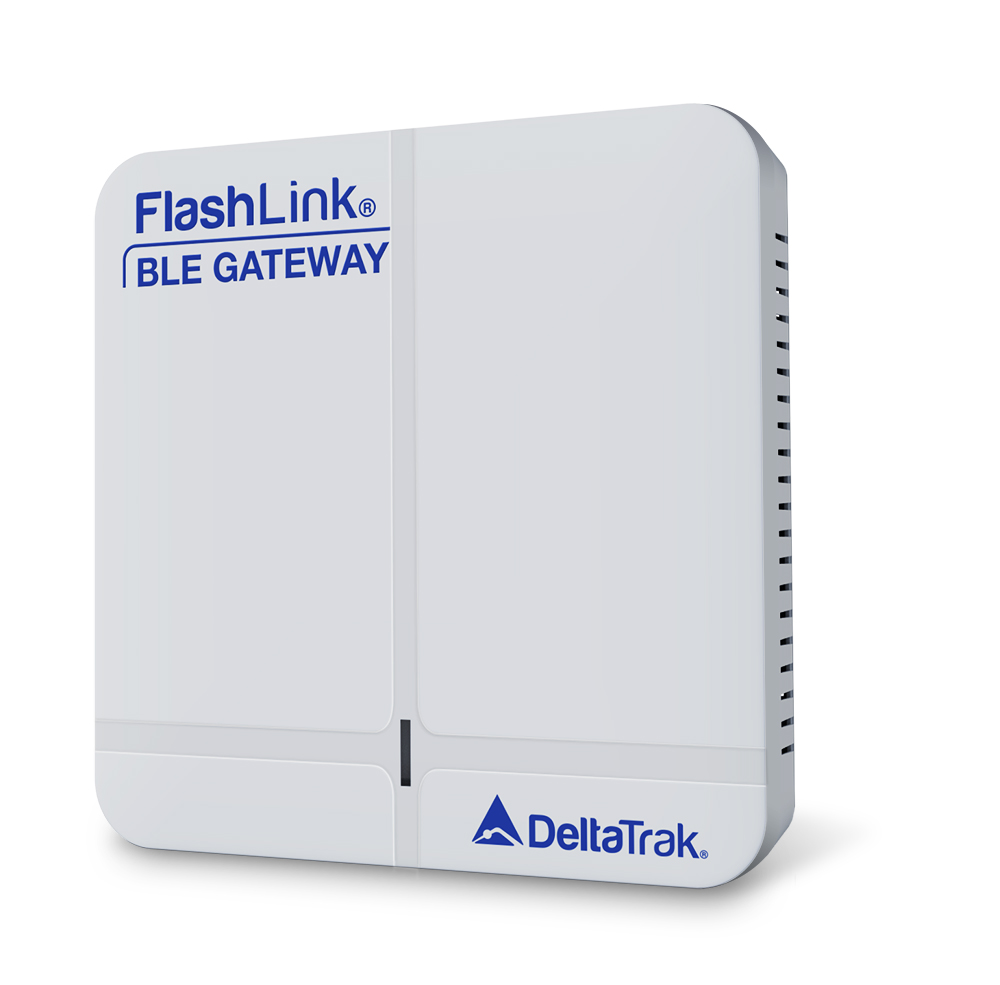

FlashLink BLE Gateway
Model: 40993
FEATURES
- Receives data from FlashLink BLE Loggers
- Scans >200 Loggers per second, up to 100 ft away
- Transmits via Wi-Fi or Ethernet connection
- Powered by DC 5V or Power over Ethernet (PoE)
- Data parameters via configuration software
The FlashTrak BLE System utilizes Bluetooth Low Energy technology to provide a temperature monitoring solution designed for exporters and for suppliers delivering inbound loads of perishable food to supermarkets, restaurants, distribution centers, and warehouses. This solution is highly efficient in that it uses minimal power, connects and transfers information in milliseconds, and does not require device pairing. It is used effectively to verify temperature data at check points between departure and final delivery, last mile delivery and cross dock applications.
FlashLink® BLE Gateway
| Feature | Specification |
|---|---|
| Operating Range | -4°F to 149°F (-20°C – 65°C) |
| Power Source | Power Over Ethernet or DC 5V |
| Scanning | >200 BLE Loggers per second |
| Wireless Distance | 100ft (30.5 meters) |
| Dimensions | 6.5in x 6.5 in x 0.98in (165.1mm x 165.1mm x 24.9mm |
| Casing | ABS |
| Display | Green & Red LED |
| Transimitting Method | Ethernet, Wi-Fi |
| Transmitting Protocol | HTTPS, MQTT |
| BLE Version | 5.0 |
| Network Secuity |
|
DeltaTrak manufactures products under an ISO 9001:2015 registered quality management system

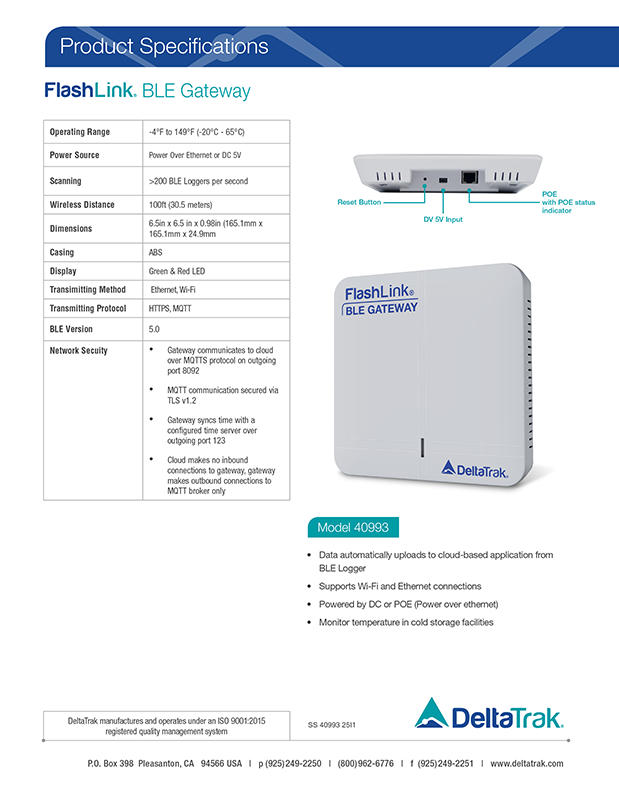

FlashLink BLE Gateway, Model 40993 Spec Sheet

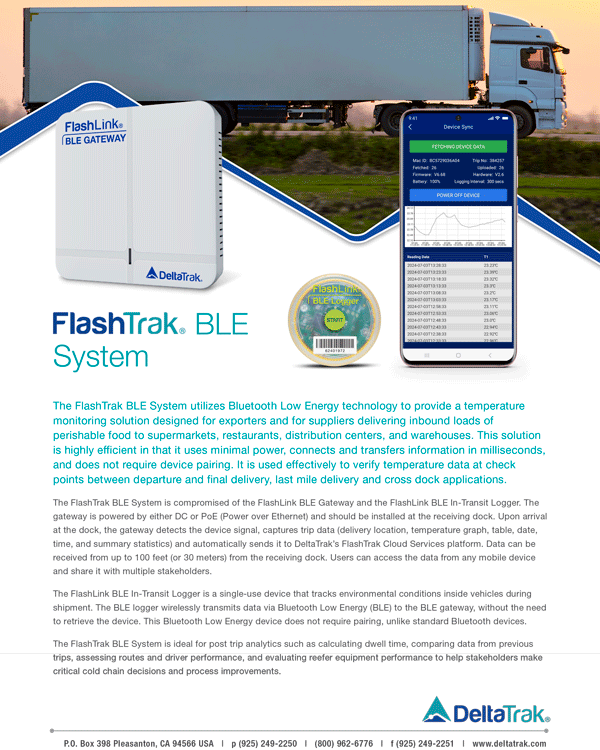

FlashLink BLE GatewayFlyer

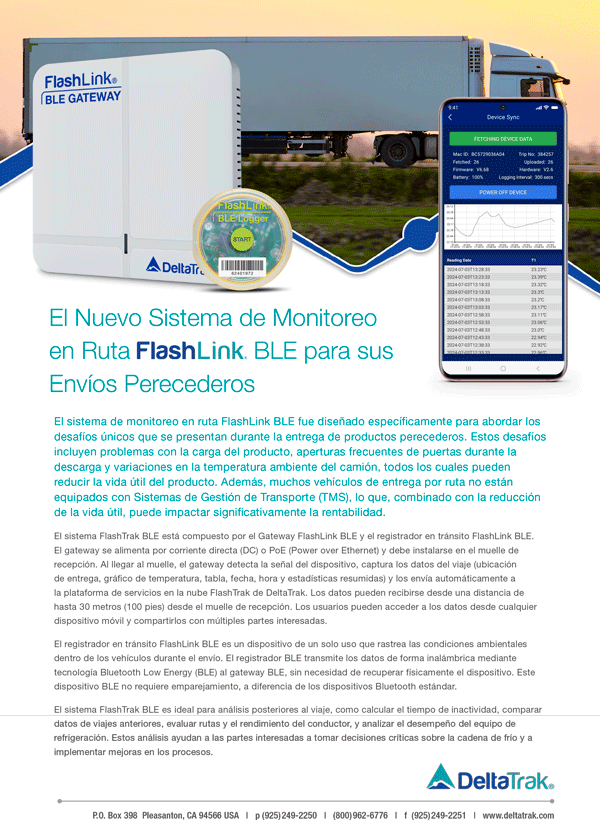

FlashLink BLE Gateway Flyer (Spanish)
