FlashLink NOW 4G Real-Time In-Transit Logger
Model: 23006
MEASUREMENT RANGE
FEATURES
- Equipped with global network communication compatibility and precision location accuracy through Wi-Fi triangulation positioning
- Monitors and provides alerts for in-transit real-time location, temperature, and light
- A unified cloud platform connecting cold chain IoT devices and applications, with seamless integration, automation, built-in analytics and business intelligence.
- Easily switch between °F and °C on the LCD display upon activation
APPLICATIONS
Real-time monitoring of export shipments, trip duration up to 15 days
The FlashLink® NOW 4G Real-Time In-Transit Logger leverages the latest technology to safeguard temperature-sensitive products during domestic and export shipments. Equipped with global network compatibility and precision location accuracy through Wi-Fi triangulation positioning. Delivering real-time monitoring when it matters most, this device captures location, temperature, and light empowering shippers and receivers to take immediate action in the event of a temperature excursion or potential security breach.
*All models packaged 10 units per case

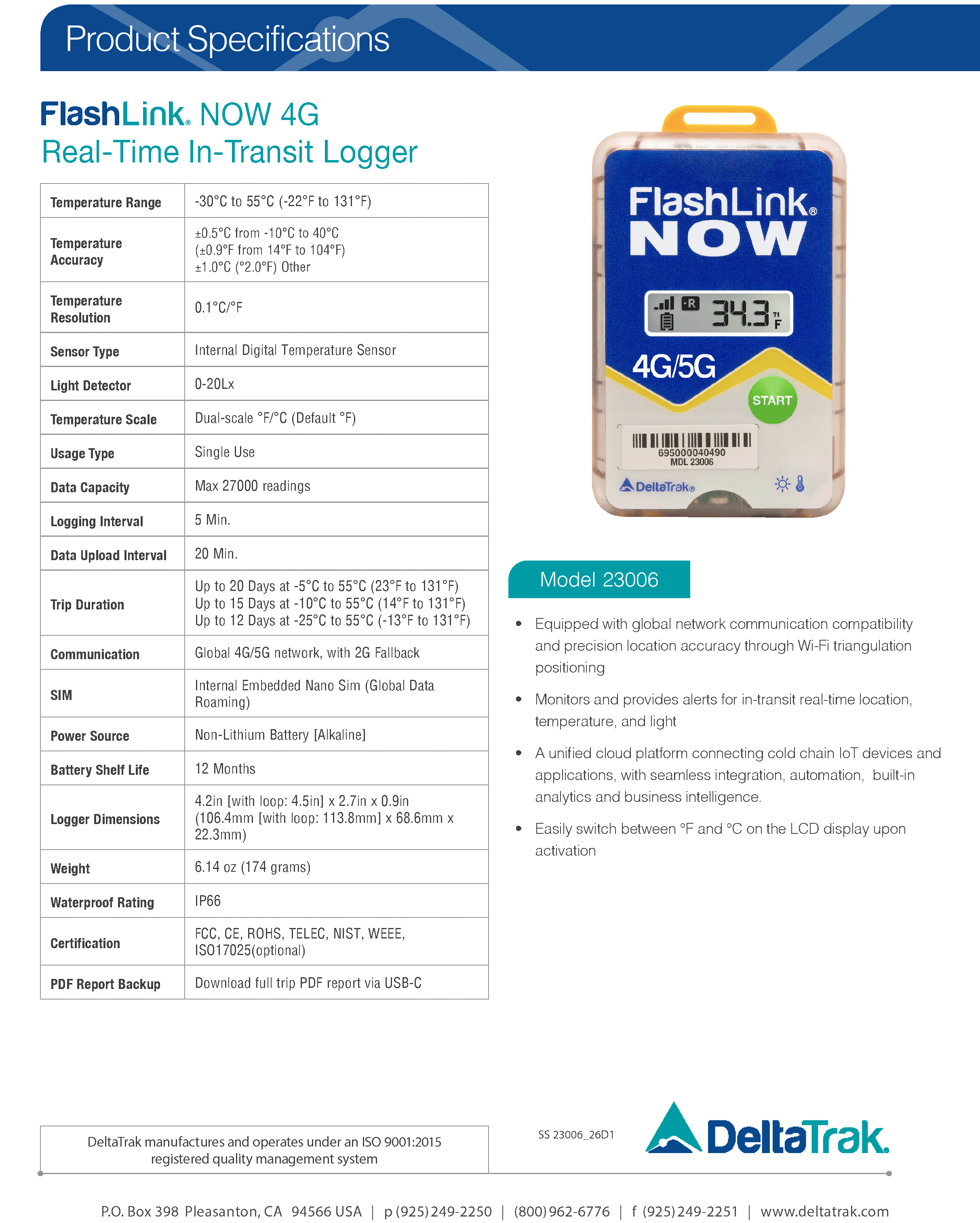

| FEATURE | SPECIFICATIONS |
|---|---|
| Temperature Range | -30°C to 55°C (-22°F to 113°F) |
| Temperature Accuracy | ±0.5°C from -10°C to 40°C (±0.9°F from -14°F to 104°F), ±1.0°C (2.0°F) Other |
| Temperature Resolution | 0.1°C/°F |
| Temperature Sensor Type | Internal Digital Temperature Sensor |
| Light Detector | 0-20Lx |
| Usage Type | Single Use |
| Data Capacity | Max 27000 readings |
| Logging Interval | 5 Min. |
| Data Upload Interval | 20 Min. |
| Trip Duration | 10 Days |
| Communication | Global 4G/5G network, with 2G Fallback |
| SIM | Internal Embedded Nano Sim (Global Data Roaming) |
| Power Source | Non-Lithium Battery [Alkaline] |
| Battery Shelf Life | 12 Months |
| Logger Dimensions | 4.2in [with loop: 4.5in] x 2.7in x 0.9in (106.4mm [with loop: 113.8mm] x 68.6mm x 22.3mm) |
| Waterproof Rating | IP66 |
| Certification | FCC, CE, ROHS, TELEC, NIST, WEEE, ISO17025(optional) |
| PDF Report Backup | Download full trip PDF report via USB-C |

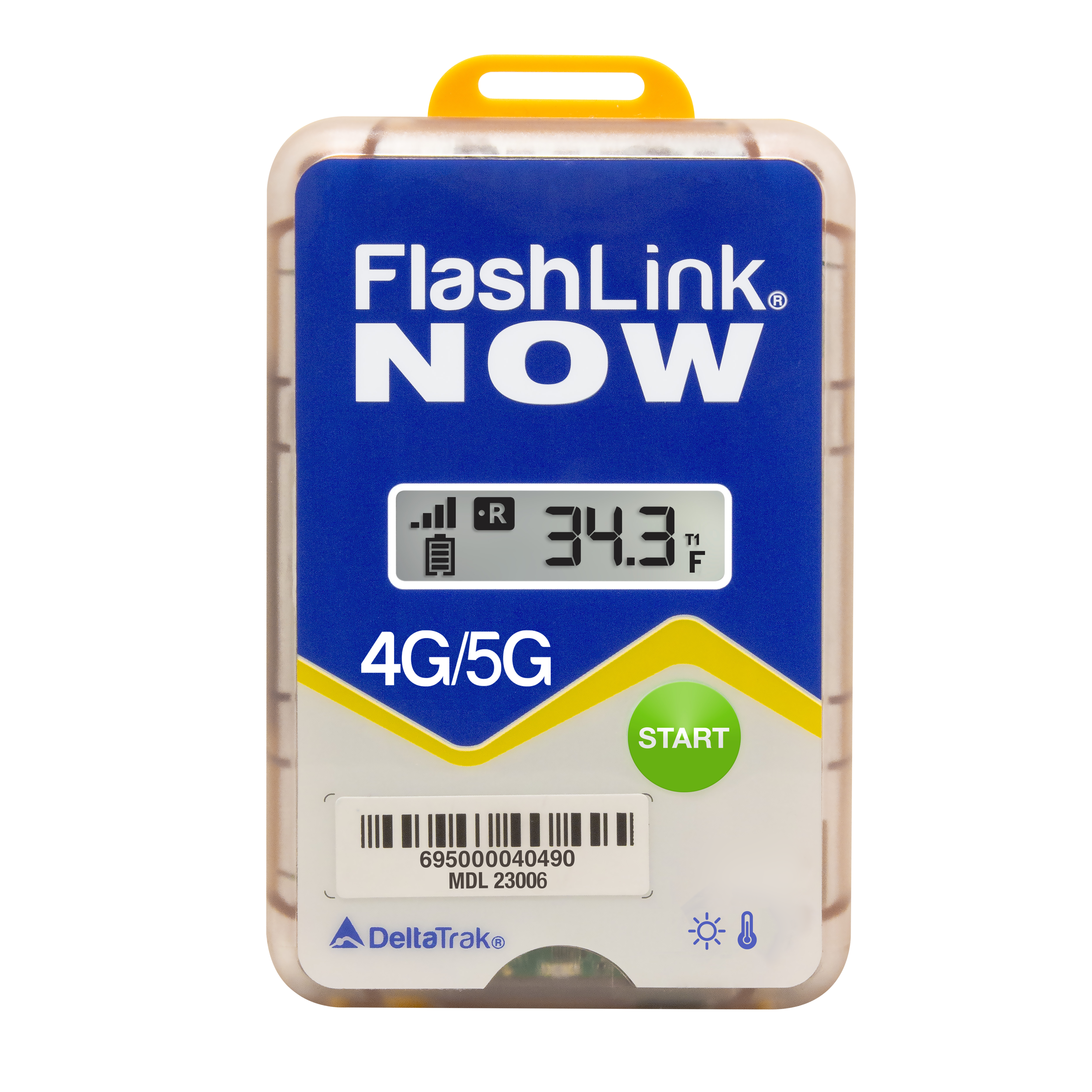

Each FlashLink® NOW 4G Real-Time In-Transit Logger is mounted on a bright green shipping card, making it easy to find when a load arrives. The card has an area for documenting shipping information and features a peel-away barcode label that can be attached to the bill of lading or other shipping documents, for traceability. It also provides shipper and receiver simple 2-steps instructions in English and Spanish.
Users can scan the QR code to quickly access more product information online.
FlashTrak
FlashTrak is a leading real-time cloud service for Supply Chain visibility, built on modern technology that transforms your supply chain management. Access data anywhere in the world with our dedicated FlashTrak Web Portal to download, print or share actionable data in real time.
