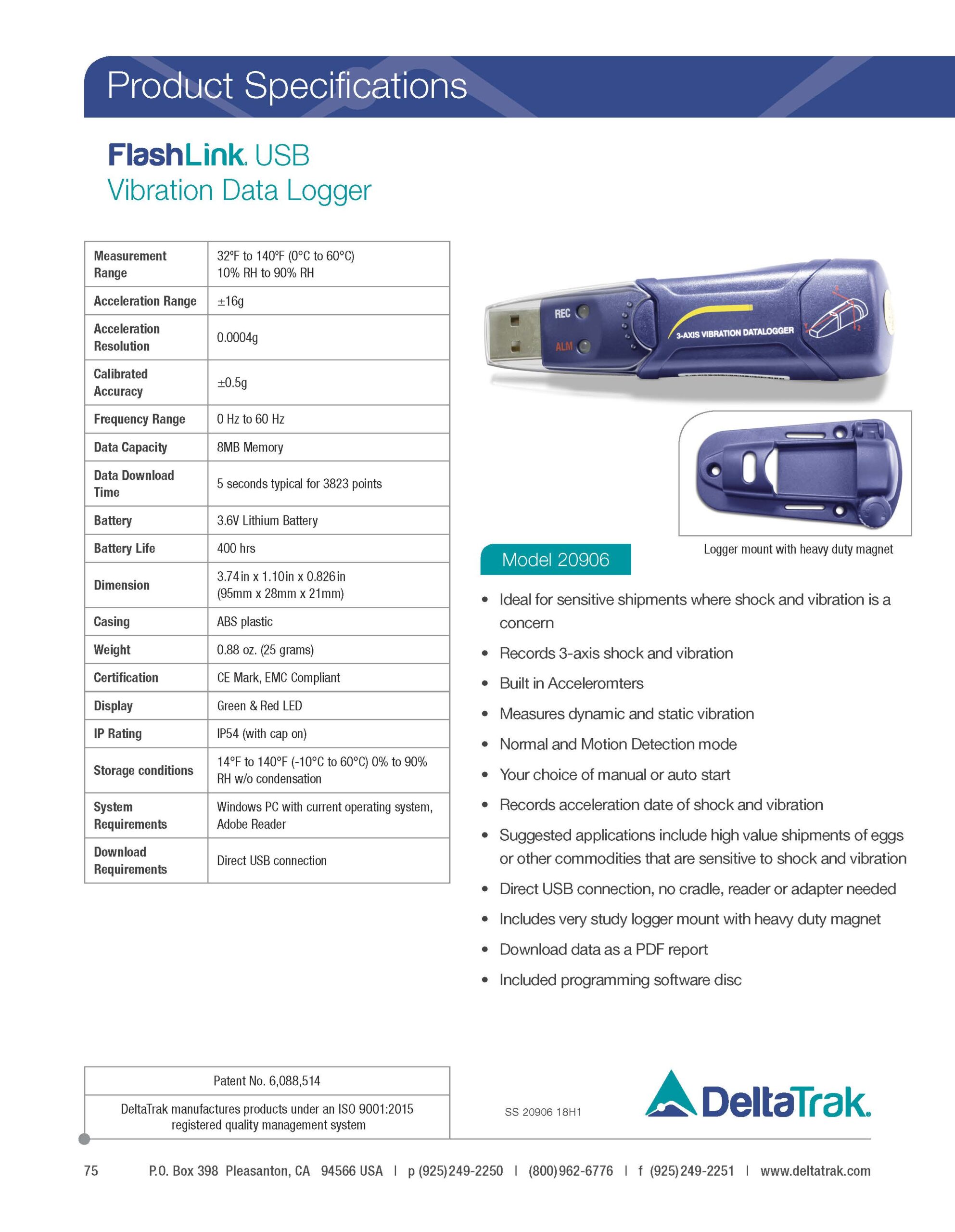

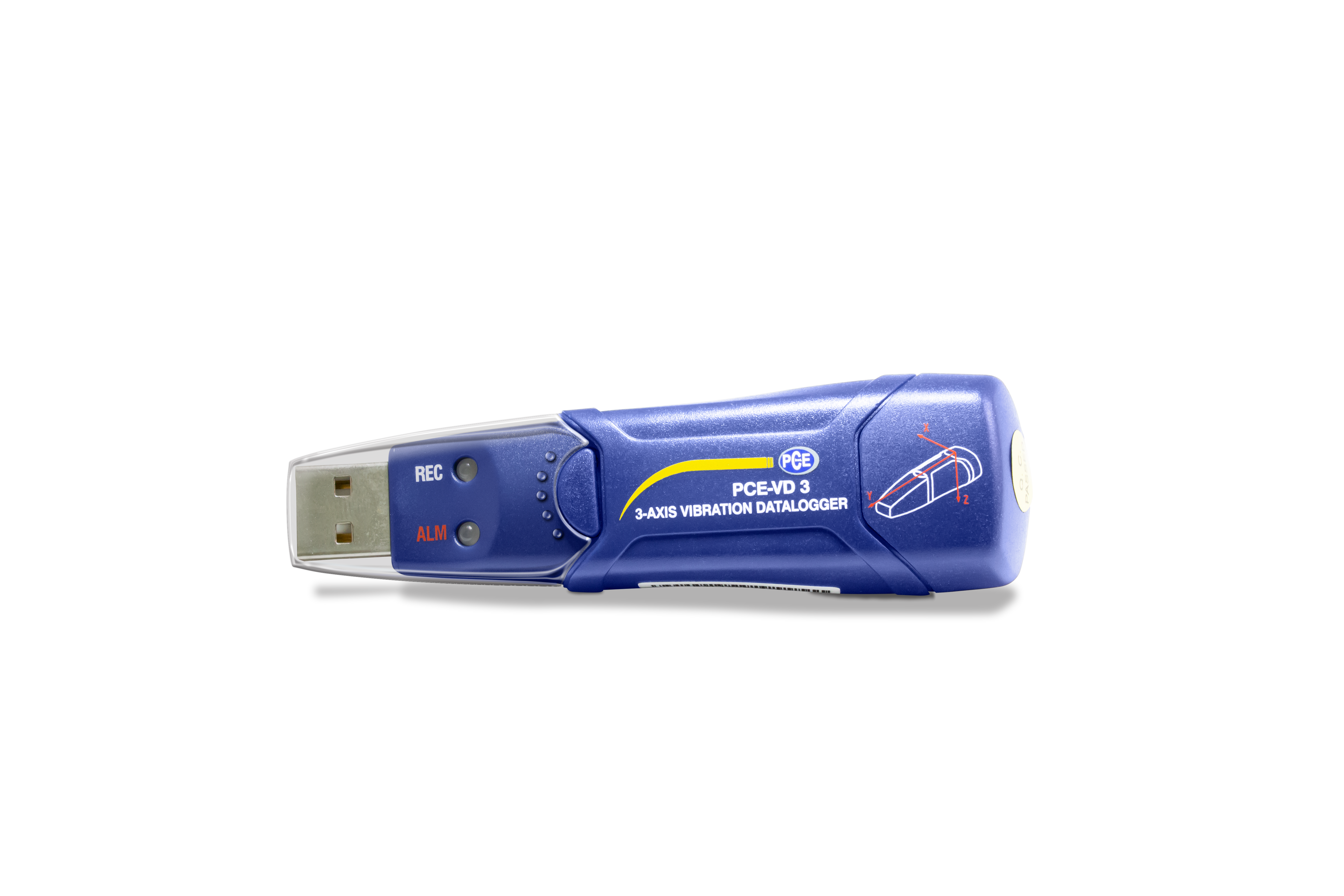

FlashLink USB Vibration Reusable Data Logger
Model: 20906
FEATURES
- Ideal for sensitive shipments where shock and vibration is a
concern - Records 3-axis shock and vibration
- Built in Accelerometers
- Measures dynamic and static vibration
- Normal and Motion Detection mode
- Your choice of manual or auto start
- Records acceleration date of shock and vibration
- Suggested applications include high value shipments of eggs
or other commodities that are sensitive to shock and vibration - Direct USB connection, no cradle, reader or adapter needed
- Includes very study logger mount with heavy duty magnet
- Download data as a PDF report
- Included programming software disc
APPLICATIONS
Produce, Prepared Foods, Pharmaceuticals, Chemicals, Storage Units, Refrigerators
*All models packaged 1 unit per box unless stated otherwise
| Measurement Range |
32ºF to 140ºF (0°C to 60°C) 10% RH to 90% RH |
| Acceleration Range | ±16g |
| Acceleration Resolution |
0.0004g |
| Calibrated Accuracy | ±0.5g |
| Frequency Range | 0 Hz to 60 Hz |
| Data Capacity | 8MB Memory |
| Data Download Time | 5 seconds typical for 3823 points |
| Battery | 3.6V Lithium Battery |
| Battery Life | 400 hrs |
| Dimension | 3.74in x 1.10 in x 0.826 in (95mm x 28mm x 21mm) |
| Casing | ABS plastic |
| Weight | 0.88 oz. (25 grams) |
| Certification | CE Mark, EMC Compliant |
| Display | Green & Red LED |
| IP Rating | IP54 (with cap on) |
| Storage conditions | 14°F to 140°F (-10°C to 60°C) 0% to 90% RH w/o condensation |
| System Requirements | Windows PC with current operating system, Adobe Reader |
| Download Requirements | Direct USB connection |
DeltaTrak manufactures products under an ISO 9001:2015 registered quality management system
Technical Support Forum
a resource for all product support needs
FlashLink Program Manager Software
FlashLink Program Manager is a user-friendly and feature-packed software for programming and downloading the FlashLink USB Reusable Data Loggers. It is available to be downloaded from the link below. A license number is necessary in order to complete the installation.
To download FlashLink Program Manager click on the link below to launch the download form. Refer to the help file in the software for data logger configuration programming.
