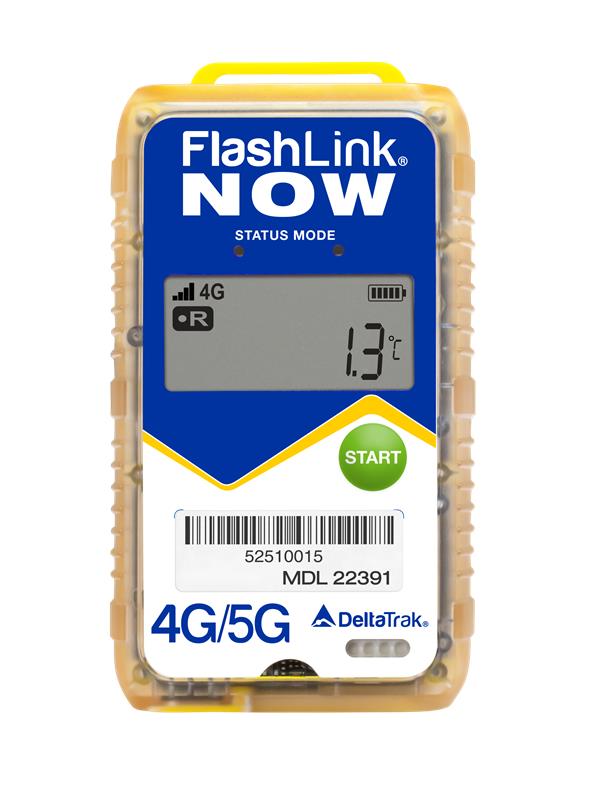

FlashLink® NOW 4G/5G Real-Time In-Transit BLE Gateway
Model: 22391
MEASUREMENT RANGE
FEATURES
- Equipped with global network communication compatibility and precision location accuracy through Wi-Fi triangulation positioning
- Monitors and provides alerts for in-transit real-time location, temperature, humidity, shock, and light
- A unified cloud platform connecting cold chain IoT devices and applications, with seamless integration, automation, built-in analytics and business intelligence.
- USB option to download PDF trip data should GSM Network not be available
The FlashLink NOW 4G/5G Real-Time In-Transit Logger utilizes the latest technology to protect domestic and export shipments of temperature sensitive products. DeltaTrak’s real-time devices provide the data shippers and receivers need to take immediate action if a temperature excursion occurs. With a single device, users can capture multiple types of sensor data, including location, temperature, and light.
FlashLink NOW incorporates several enhanced features which offer new options for accessing data and contribute to greater ease of use. The addition of an LCD screen enables users to view trip data stored in the unit’s memory. A wider temperature measurement range of -30°C to 70°C (-22°F to 158°F) allows monitoring of commodities with diverse requirements.
*All models packaged 10 units per case

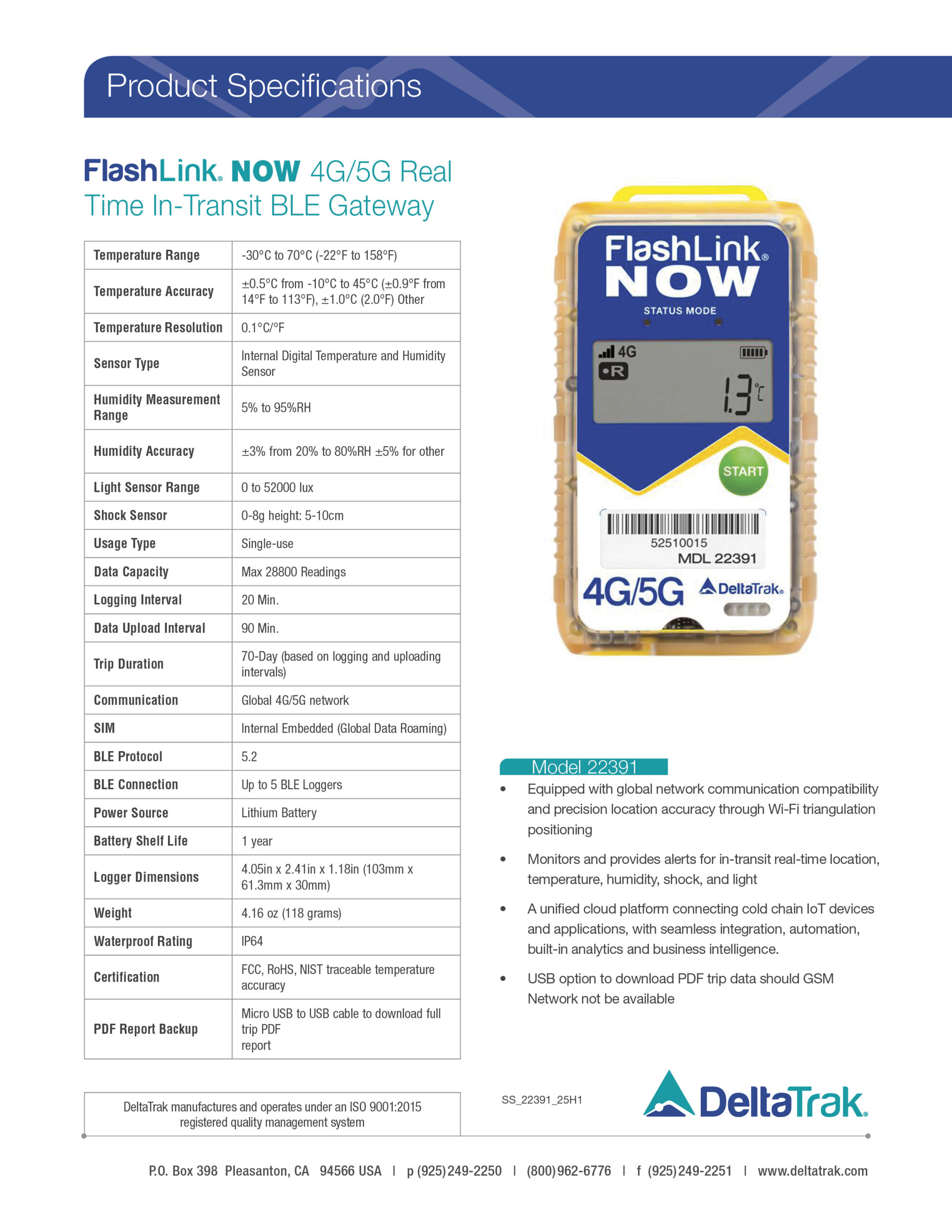

| FEATURE | SPECIFICATIONS |
| Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Temperature Accuracy | ±0.5°C from -10°C to 45°C |
| (±0.9°F from 14°F to 113°F), | |
| ±1.0°C (2.0°F) Other | |
| Temperature Resolution | 0.1°C/°F |
| Sensor Type | Internal Digital Temperature and Humidity Sensor |
| Light Sensor Range | 0 to 52000 lux |
| Usage Type | Single-use |
| Data Capacity | 28800 Readings |
| Logging Interval | 20 Min. |
| Data Upload Interval | 90 Min. |
| Trip Duration | 70-Day (based on logging and uploading intervals) |
| Cellular | Global LTE Cat-1 for 4G/5G network, with 2G Fallback |
| SIM | Internal Embedded (Global Data Roaming) |
| Power Source | Lithium-ion battery, meets UN38.3 |
| Battery Shelf Life | 1 year |
| Logger Dimensions | 4.05in x 2.41in x 1.18in (103mm x 61.3mm x 30mm) |
| Weight | 4.6 oz (130 grams) |
| Waterproof Rating | IP64 |
| Certification | FCC, RoHS, NIST traceable temperature accuracy |
| PDF Report Backup | Micro USB to USB cable to download full trip PDF report |
Each FlashLink® NOW 4G/5G Real-Time In-Transit Logger is mounted on a bright green shipping card, making it easy to find when a load arrives. The card has an area for documenting shipping information and features a peel-away barcode label that can be attached to the bill of lading or other shipping documents, for traceability. It also provides shipper and receiver simple 2-steps instructions in English and Spanish.
Users can scan the QR code to quickly access more product information online.
FlashTrak
FlashTrak is a leading real-time cloud service for Supply Chain visibility, built on modern technology that transforms your supply chain management. Access data anywhere in the world with our dedicated FlashTrak Web Portal to download, print or share actionable data in real time.
