Many industry verticals have a cold chain element, whether it
is Food, Pharmaceuticals, Floral, or even Aero-Space, but each one has its own unique
requirements to meet established Guidelines or Regulations. DeltaTrak is the recognized
Innovator for supplying products that exceed industry requirements for maintaining Supply
Chain Integrity, from End to End.
DeltaTrak®, Inc., is a leading innovator of cold chain management and
temperature monitoring solutions. Our product line includes a wide range of temperature and humidity
data loggers and wireless systems.
Equipped with global network compatibility, Location Based Services (LBS), and precision accuracy through Wi-Fi triangulation positioning for reliable real-time monitoring
Monitors in-transit real-time location, temperature, humidity, shock, and light exposure
Our Cloud Service platforms offer different levels of access to optimize user experience and API integration into customer systems
Easily toggle between °F and °C on the LCD display upon activation
Customizable trip durations for 12, 30, 70, 90, 120 days
APPLICATIONS
Real-time monitoring of export shipments, trip duration up to 70 days
The FlashLink® NOW 4G Real-Time In-Transit Logger leverages the latest technology to safeguard temperature-sensitive products during domestic and export shipments. Equipped with global 4G network compatibility, Location-Based Services (LBS), and precision accuracy through Wi-Fi triangulation positioning. Delivering real-time monitoring when it matters most, this device captures location, temperature, humidity, shock, and light empowering shippers and receivers to take immediate action in the event of a temperature excursion or potential security breach.

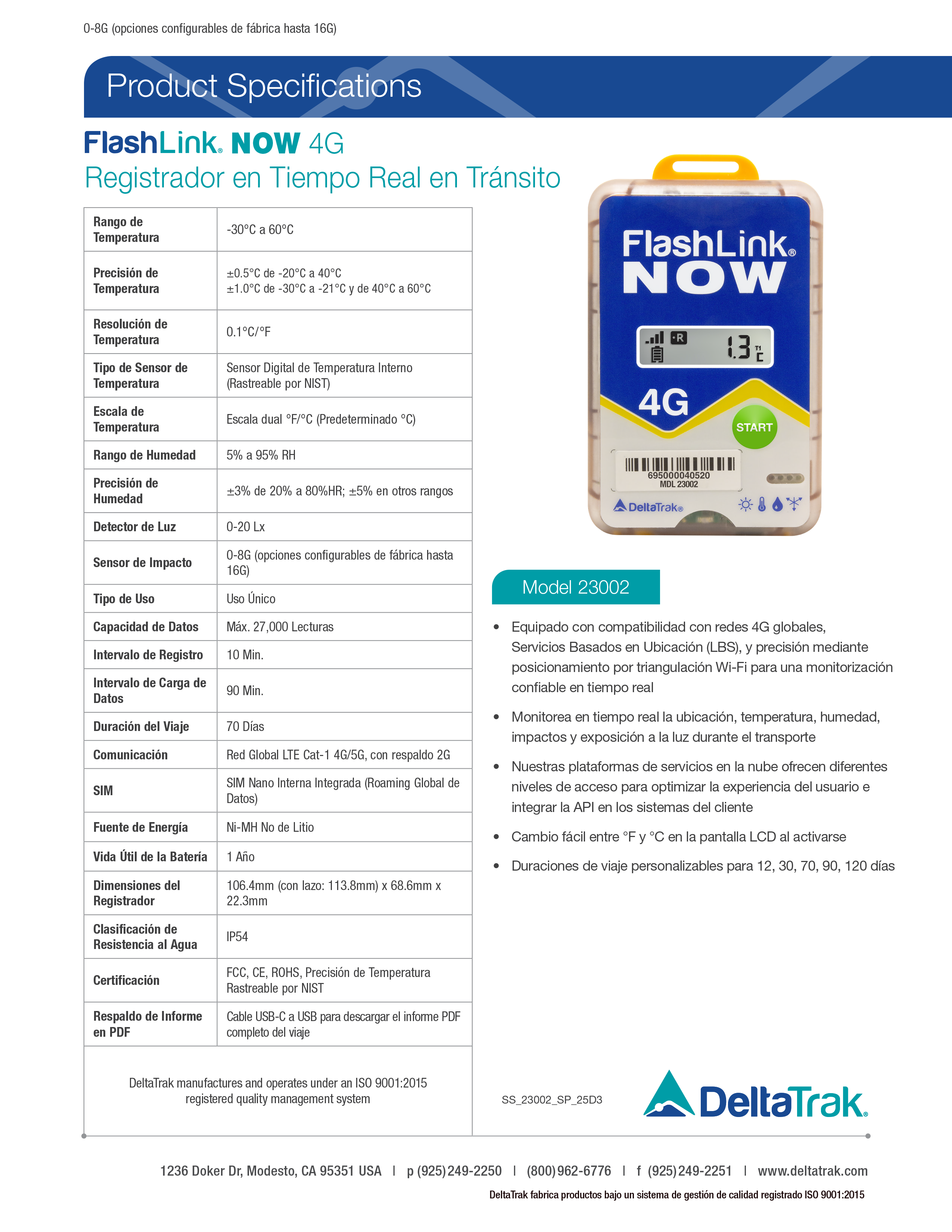

Feature
Specification
Temperature Range
-30°C to 60°C (-22°F to 140°F)
Temperature Accuracy
±0.5°C from -20°C to 40°C
(±0.9°F from -4°F to 104°F
±1.0°C (2.0°F) Other Other
Temperature Resolution
0.1 °F/°C
Temperature Sensor Type
Internal Digital Temperature Sensor (NIST traceable)
Temperature Scale
Dual-scale °F/°C (Default °C)
Humidity Range
5% to 95% RH
Humidity Accuracy
±3% from 20% to 80%RH ±5% for other
Light Detector
On / Off, triggers at 15 Lux
Shock Sensor
4g, height 5cm to 10cm (Factory
Customizable options up to 16g)
Usage Type
Single Use
Data Capacity
Max 27000 readings
Logging Interval
10 Min.
Data Upload Interval
90 Min.
Trip Duration
70 Days
Communication
Global LTE Cat-1 4G/5G network, with 2G
Fallback
SIM
Internal Embedded (Global Data
Roaming) Nano Sim
Power Source
Non-Lithium Ni-MH
Battery Shelf Life
1 Year
Logger Dimensions
4.2in [with loop: 4.5in] x 2.7in x 0.9in
(106.4mm [with loop: 113.8mm] x
68.6mm x 22.3mm)
Waterproof Rating
IP54
Certification
FCC, CE, ROHS, NIST traceable
temperature accuracy
PDF Report Backup
USB-C to USB cable to download full trip PDF
report
DeltaTrak manufactures products under an ISO 9001:2015 registered quality management system
Each FlashLink® NOW 4G Real-Time In-Transit Logger is mounted on a bright green shipping card, making it easy to find when a load arrives. The card has an area for documenting shipping information and features a peel-away barcode label that can be attached to the bill of lading or other shipping documents, for traceability. It also provides shipper and receiver simple 2-steps instructions in English and Spanish.
Users can scan the QR code to quickly access more product information online.
FlashTrak is a leading real-time cloud service for Supply Chain visibility, built on modern technology that transforms your supply chain management. Access data anywhere in the world with our dedicated FlashTrak Web Portal to download, print or share actionable data in real time.
FlashTrak Connect Mobile App
FlashTrak Connect is a supply chain application offering more options for viewing shipment data. Shippers and receivers use the app to conveniently access information for shipments monitored by DeltaTrak data loggers.
